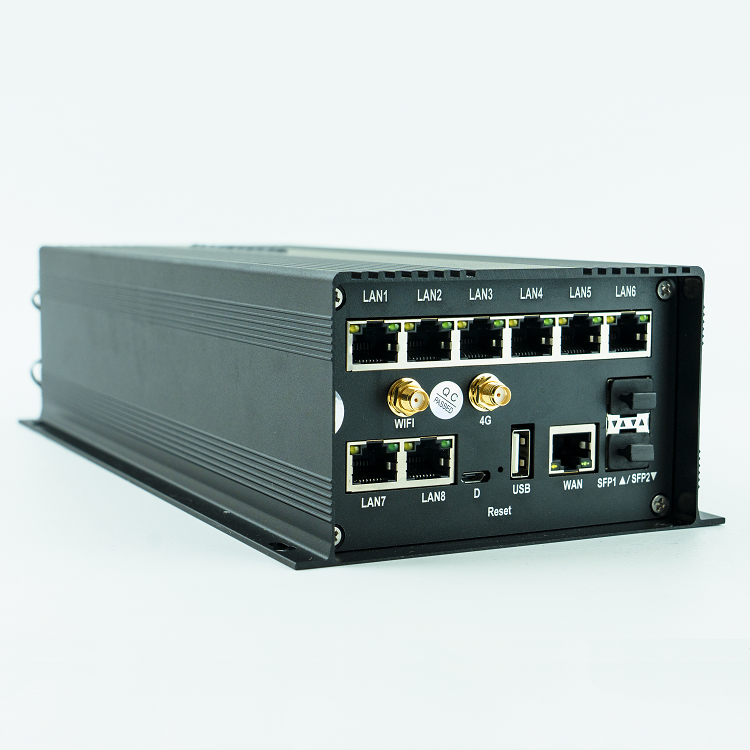

Smart Pole Gateway WE-GW-260
1. Product description
WE-GW-260 Smart Cloud Box is an industrial IoT intelligent gateway, which integrates optical fiber communication, ETH Ethernet communication, AI computing, edge computing, data intelligent collection, multiple protocol conversion, smart gateway, full Netcom/4G wireless communication, Bluetooth MESH communication, WIFI communication, RS485 communication, data forwarding, virtual private network, local storage and other functions in one. Build a universal and intelligent IoT channel between the monitoring equipment and the cloud service system. Assist customers to realize intelligent collection, protocol conversion, wireless communication, etc. of various equipment such as optical fiber, Ethernet, RS485, and WIFI. It is widely used in smart cities, smart multi-function poles, smart bus stations, smart agriculture, and smart photovoltaic industries.
2. System architecture
3. Product function
Integrate data intelligent collection, multiple protocol conversion, intelligent gateway, data processing and forwarding, virtual private network, local storage and other functions in one;
Gigabit optical fiber communication, optional single-mode single fiber, single-mode dual fiber, port type can choose FC port or SC port, can be cascaded, the default communication distance is 20km;
ETH Ethernet communication, 10M/100M/1000M adaptive, support MDI/MDI-X port auto flip;
WIFI supports AP mode, STA module, Repeater mode;
RS485 communication, supports up to 64 devices;
Full Netcom/4G wireless communication;
Support TCP/IP, WEPPL, OPC, Modbus, DNP3, DLT645 and other protocols. (customizable);
AC wide voltage input, AC110V-AC265V, up to 3000W load;
Support multiple DC output, DC12V and DC24V;
Support AC grid parameter monitoring and DC circuit monitoring;
Support AC output strategy control, support DC output strategy control;
Stable and reliable communication, multiple hardware and software technologies guarantee wireless connection "always online", unattended environment applications are more secure;
Multiple security mechanisms such as VPN private network to ensure data safety and reliability;
Full network coverage, including full Netcom/4G/3G/2.5G, comprehensive coverage of domestic and overseas operator networks, more flexible project application;
Industrial-grade design and application, aluminum alloy metal shell, stable operation in harsh environments, high and low temperature resistance (-20℃ to 60℃);
Based on Linux secondary development, customers can carry out secondary development of upper-level applications according to project requirements, and the standard is easy to use;
20kV surge lightning protection;
The configuration parameters can be saved, which greatly improves the configuration efficiency of large-scale M2M equipment, and supports parameter backup and import;
M2M equipment cloud platform, which centrally monitors, configures, upgrades, and diagnoses a large number of communication terminals distributed in various places, which greatly reduces the maintenance cost of operators, integrators, equipment providers and other parties, and improves management efficiency;
Scalable Bluetooth 5.0 (BLE MESH) communication, up to 255 devices can be networked;
Scalable Zigbee protocol;
Extensible LoraWAN equipment, supporting 470M, 510M, 868M, 915M, 923M communication frequency bands
4. Specification
Category | Function | Standard | Description |
Interface | High Power input | 1 line | Voltage range: AC110V～265V Current range: 0～10A Can be customized 20A Power grid parameter monitoring: power voltage Grid current Power factor power |
Interface | High Power input | 3 lines | Voltage range: AC110V～265V Current range: 0～5A Can be customized 20A Control mode: Relay remote control Unattended policy control |
Interface | 12V DC output | 2 lines | Output voltage: 12V Output current: 0～3A all the way 0～2A all the way power: 36W all the way 24W all the way protection: Over current protection Short circuit protection Over temperature protection effectiveness: Greater than 90% Ripple: 30～80mV |
Interface | 24V DC output | 1 line | Output voltage: 24V Output current: 0～1.5A all the way power: 36W all the way protection: Overcurrent protection Short circuit protection Over temperature protection effectiveness: Greater than 90% Ripple: 30～80mV |
Interface | Optical fiber | Cascade Gigabit Optical Port | Port form: SC port or FC port Default SC port Fiber Mode: Single mode single fiber or single mode dual fiber Default single mode single fiber Communication distance: 20km Optional 100km Connection method: Cascade connection |
Interface | Industrial serial port | 1 line | Serial port form: RJ45 industrial terminal Serial port type: RS-485 Serial port parameters: 1200~115200bps 8 data bits Stop bit No parity/odd parity/even parity No flow control |
Interface | Ethernet port | 1 WAN interface | 10/100M/1000M adaptive RJ45 interface Internet connection |
Interface | Ethernet port | 7 WAN interface | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 10Base-TX Fast Ethernet IEEE 802.3x flow control 0M/100M/1000M adaptive All ports can be used as UP-LINK ports Support MDI/MDI-X port auto flip |
Interface | SIM card-built-in | 1 | Support 1.8V/3V SIM/UIM card Built-in 15KV ESD protection |
Wireless | WIFI | 1 | Standard and frequency band Support IEEE802.11b/g/n standard Theoretical bandwidth IEEE802.11b/g: The highest rate is 54Mbps EEE802.11n: The highest rate reaches 300Mbps Secure encryption Support WEP, WPA, WPA2 and other encryption methods mode STA mode AP mode Repeater mode |
Interactive | Indicator light | 4 | Power Indicator Running status indicator Network indicator 4G indicator |
Interface | Antenna interface | 2 | Interface form SMA interface Interface allocation: WIFI antenna x1 4G antenna x1 |
CPU | Edge computing | CPU | 32-bit processor |
CPU | Edge computing | DDR | 64MB DDR Scalable to 256MB |
CPU | Edge computing | FLASH | 128M FLASH Scalable to 1GMB |
CPU | AI core | CPU | A72 dual core A53 quad core |
CPU | AI core | CPU | MALI T680MP4 Quad-core GPU Support OpenGL, OpenCL |
CPU | AI core | DDR | 4G SDRAM |
CPU | AI core | FLASH | 32G FLASH |
Button | Reset | 1 | Reset |
Operation and maintenance | Safety | Link detection | PPP layer heartbeat ICMP detection Multi-level link detection mechanisms such as TCP and application layer heartbeat to maintain wireless links And support automatic reconnection after disconnection Ensure that the equipment is "always online" to support equipment operation self-check technology |
Operation and maintenance | Safety | Built-in watchdog | Support equipment operation self-check technology Support equipment self-recovery from operation failure Hardware watchdog Software watchdog |
Operation and maintenance | Network management | Network management | Support automatic dialing when the device is powered on Support long connection mode, short connection mode Support Cloud Voice M2M device cloud platform, remote configuration Use local serial port or remote way for software upgrade Support local or remote viewing of output logs, which is convenient for engineers to view the operating status of equipment Support Cloud Voice M2M device cloud platform, remote centralized management of communication terminals distributed in various places |
industrial design | Protection level | IP30 | Metal shell System security isolation Profile heat dissipation |
industrial design | Applicable environment | Working storage conditions | Range of working temperature: Minus 20ºC～70ºC Storage temperature range: Minus 30ºC～80ºC Relative humidity range: 15~95%RH non-condensing |
industrial design | Physical structure | Physical structure | Installation method: Wall-mounted Rail type Dimensions: 300mmx135mmx81.4mm Weight: 3KG |
5. Wiring method
Power side wiring method
Network side wiring method
The wiring method of the network side is as shown in the figure below. In the case of cascading, the fiber A and B are used crosswise, that is, the A terminal of the cloud box A is connected to the B terminal of the cloud box B, or the B terminal of the cloud box A is connected to the A terminal of the cloud box B.
Terminal block with tail wire (purchased separately)
A total of 8 terminals
%1. Installation structure
Unit: mm
Smart Pole Gateway WE-GW-260
1. Product description
WE-GW-260 Smart Cloud Box is an industrial IoT intelligent gateway, which integrates optical fiber communication, ETH Ethernet communication, AI computing, edge computing, data intelligent collection, multiple protocol conversion, smart gateway, full Netcom/4G wireless communication, Bluetooth MESH communication, WIFI communication, RS485 communication, data forwarding, virtual private network, local storage and other functions in one. Build a universal and intelligent IoT channel between the monitoring equipment and the cloud service system. Assist customers to realize intelligent collection, protocol conversion, wireless communication, etc. of various equipment such as optical fiber, Ethernet, RS485, and WIFI. It is widely used in smart cities, smart multi-function poles, smart bus stations, smart agriculture, and smart photovoltaic industries.
2. System architecture
3. Product function
Integrate data intelligent collection, multiple protocol conversion, intelligent gateway, data processing and forwarding, virtual private network, local storage and other functions in one;
Gigabit optical fiber communication, optional single-mode single fiber, single-mode dual fiber, port type can choose FC port or SC port, can be cascaded, the default communication distance is 20km;
ETH Ethernet communication, 10M/100M/1000M adaptive, support MDI/MDI-X port auto flip;
WIFI supports AP mode, STA module, Repeater mode;
RS485 communication, supports up to 64 devices;
Full Netcom/4G wireless communication;
Support TCP/IP, WEPPL, OPC, Modbus, DNP3, DLT645 and other protocols. (customizable);
AC wide voltage input, AC110V-AC265V, up to 3000W load;
Support multiple DC output, DC12V and DC24V;
Support AC grid parameter monitoring and DC circuit monitoring;
Support AC output strategy control, support DC output strategy control;
Stable and reliable communication, multiple hardware and software technologies guarantee wireless connection "always online", unattended environment applications are more secure;
Multiple security mechanisms such as VPN private network to ensure data safety and reliability;
Full network coverage, including full Netcom/4G/3G/2.5G, comprehensive coverage of domestic and overseas operator networks, more flexible project application;
Industrial-grade design and application, aluminum alloy metal shell, stable operation in harsh environments, high and low temperature resistance (-20℃ to 60℃);
Based on Linux secondary development, customers can carry out secondary development of upper-level applications according to project requirements, and the standard is easy to use;
20kV surge lightning protection;
The configuration parameters can be saved, which greatly improves the configuration efficiency of large-scale M2M equipment, and supports parameter backup and import;
M2M equipment cloud platform, which centrally monitors, configures, upgrades, and diagnoses a large number of communication terminals distributed in various places, which greatly reduces the maintenance cost of operators, integrators, equipment providers and other parties, and improves management efficiency;
Scalable Bluetooth 5.0 (BLE MESH) communication, up to 255 devices can be networked;
Scalable Zigbee protocol;
Extensible LoraWAN equipment, supporting 470M, 510M, 868M, 915M, 923M communication frequency bands
4. Specification
Category | Function | Standard | Description |
Interface | High Power input | 1 line | Voltage range: AC110V～265V Current range: 0～10A Can be customized 20A Power grid parameter monitoring: power voltage Grid current Power factor power |
Interface | High Power input | 3 lines | Voltage range: AC110V～265V Current range: 0～5A Can be customized 20A Control mode: Relay remote control Unattended policy control |
Interface | 12V DC output | 2 lines | Output voltage: 12V Output current: 0～3A all the way 0～2A all the way power: 36W all the way 24W all the way protection: Over current protection Short circuit protection Over temperature protection effectiveness: Greater than 90% Ripple: 30～80mV |
Interface | 24V DC output | 1 line | Output voltage: 24V Output current: 0～1.5A all the way power: 36W all the way protection: Overcurrent protection Short circuit protection Over temperature protection effectiveness: Greater than 90% Ripple: 30～80mV |
Interface | Optical fiber | Cascade Gigabit Optical Port | Port form: SC port or FC port Default SC port Fiber Mode: Single mode single fiber or single mode dual fiber Default single mode single fiber Communication distance: 20km Optional 100km Connection method: Cascade connection |
Interface | Industrial serial port | 1 line | Serial port form: RJ45 industrial terminal Serial port type: RS-485 Serial port parameters: 1200~115200bps 8 data bits Stop bit No parity/odd parity/even parity No flow control |
Interface | Ethernet port | 1 WAN interface | 10/100M/1000M adaptive RJ45 interface Internet connection |
Interface | Ethernet port | 7 WAN interface | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 10Base-TX Fast Ethernet IEEE 802.3x flow control 0M/100M/1000M adaptive All ports can be used as UP-LINK ports Support MDI/MDI-X port auto flip |
Interface | SIM card-built-in | 1 | Support 1.8V/3V SIM/UIM card Built-in 15KV ESD protection |
Wireless | WIFI | 1 | Standard and frequency band Support IEEE802.11b/g/n standard Theoretical bandwidth IEEE802.11b/g: The highest rate is 54Mbps EEE802.11n: The highest rate reaches 300Mbps Secure encryption Support WEP, WPA, WPA2 and other encryption methods mode STA mode AP mode Repeater mode |
Interactive | Indicator light | 4 | Power Indicator Running status indicator Network indicator 4G indicator |
Interface | Antenna interface | 2 | Interface form SMA interface Interface allocation: WIFI antenna x1 4G antenna x1 |
CPU | Edge computing | CPU | 32-bit processor |
CPU | Edge computing | DDR | 64MB DDR Scalable to 256MB |
CPU | Edge computing | FLASH | 128M FLASH Scalable to 1GMB |
CPU | AI core | CPU | A72 dual core A53 quad core |
CPU | AI core | CPU | MALI T680MP4 Quad-core GPU Support OpenGL, OpenCL |
CPU | AI core | DDR | 4G SDRAM |
CPU | AI core | FLASH | 32G FLASH |
Button | Reset | 1 | Reset |
Operation and maintenance | Safety | Link detection | PPP layer heartbeat ICMP detection Multi-level link detection mechanisms such as TCP and application layer heartbeat to maintain wireless links And support automatic reconnection after disconnection Ensure that the equipment is "always online" to support equipment operation self-check technology |
Operation and maintenance | Safety | Built-in watchdog | Support equipment operation self-check technology Support equipment self-recovery from operation failure Hardware watchdog Software watchdog |
Operation and maintenance | Network management | Network management | Support automatic dialing when the device is powered on Support long connection mode, short connection mode Support Cloud Voice M2M device cloud platform, remote configuration Use local serial port or remote way for software upgrade Support local or remote viewing of output logs, which is convenient for engineers to view the operating status of equipment Support Cloud Voice M2M device cloud platform, remote centralized management of communication terminals distributed in various places |
industrial design | Protection level | IP30 | Metal shell System security isolation Profile heat dissipation |
industrial design | Applicable environment | Working storage conditions | Range of working temperature: Minus 20ºC～70ºC Storage temperature range: Minus 30ºC～80ºC Relative humidity range: 15~95%RH non-condensing |
industrial design | Physical structure | Physical structure | Installation method: Wall-mounted Rail type Dimensions: 300mmx135mmx81.4mm Weight: 3KG |
5. Wiring method
Power side wiring method
Network side wiring method
The wiring method of the network side is as shown in the figure below. In the case of cascading, the fiber A and B are used crosswise, that is, the A terminal of the cloud box A is connected to the B terminal of the cloud box B, or the B terminal of the cloud box A is connected to the A terminal of the cloud box B.
Terminal block with tail wire (purchased separately)
A total of 8 terminals
%1. Installation structure
Unit: mm
