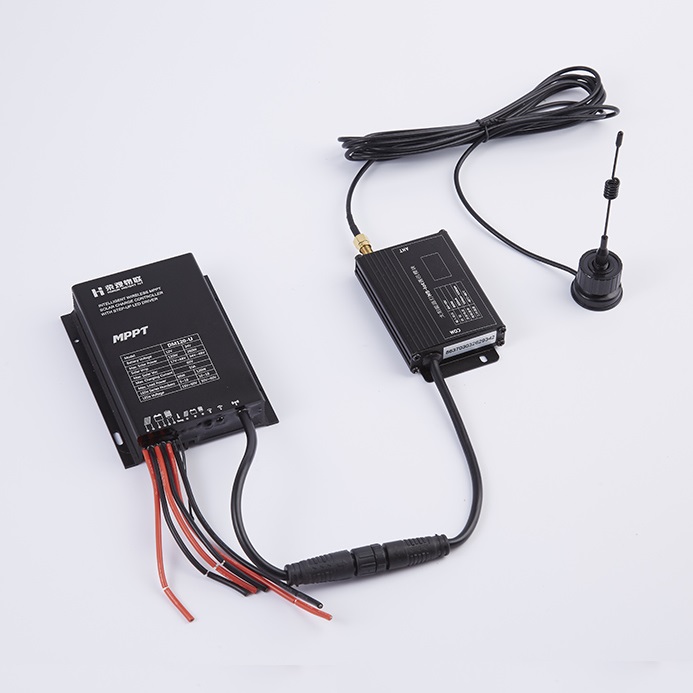

NBIoT 10A 12V Solar Street Light Controller

The DM60-U solar street light controller can record the operating status of the whole system, including operating days, over-dischargings, full-chargings, etc. And besides, it can also keep a record of battery voltage changes in a week, enabling the user to have a clear understanding of the system and conduct better analysis on it. The user needs to use the remote control (CU-ALL) to read the system's operating status, and when the reading is successfully done, the parameters will be recorded in the remote control.
  • DM60-NB

  • HonorInsight

  • 9032899090

  • Shenzhen, China

  • 5000000PCS/Year

  • T/T, Paypal

  • 3 years

Size:
Color:
Protocol:
Availability:
Quantity:

PDF Export

NBIoT 10A 12V Solar Street Light Controller



Product Parameter:

Items
ValuesAdjustableDefault
ModelDM60

Controller type

-R:infrared remote control;

-W: 2.4G wireless remote control



System voltage 12V
Lead-acid
Static power consumption

 -R type: ≤10mA

  -W type: ≤30mA



Sleep power consumption≤1mA

Load current50mA ~3000mA330mA
Load voltage15V ~ 50V

Maximum load power60W/12V

Load conversion efficiency96%(Typical efficiency 85%~96%)

Load current accuracy
≤3%

Intelligent powerHigh, Moderate, Low, Auto, USE, NoMedium
Load working period9-Period + Pre-dawn lighting

Period adjustment range1min/10min

Power adjustment range1%/10%

Maximum solar input power130W/12V

Maximum charge current10A

Maximum solar input voltage≤50V

Over voltagePB-16.0V; LI-overcharge voltage+2V
16.0V
Limited charge voltagePB-15.5V; LI-overcharge voltage+1V
15.5V
Equalizing charge voltagePB-14.6V; LI-None
14.6V
Equalizing charge voltage30 days
30D

Boost charge voltage

(Lead-acid)

8.5V ~17.0V
14.4V
Charge voltage(lithium)

Floating charge voltage

(Lead-acid)

8.5V ~17.0V
13.8V

Charge return voltage

(lithium)

Over discharge voltage8.5V ~17.0V11.0V
Over discharge return voltage8.5V~17.0V
12.5V
Temperature compensation coefficient

PB: -3.0mV/℃/2V; lithium battery;

no compensation


Light control voltage3V ~ 11V 5V
Light control delay0s ~ 60s/2Min ~ 60Min10s
High temperature charge+40℃ ~ +9065
Low temperature charge0℃ ~ -35
-35
Operating temperature-35℃ ~ +65

IP ratingIP68

ProtectionsBattery reverse polarity protection, solar panel reverse polarity protection, solar panel over-voltage protection, lithium battery over-voltage and over-discharge protection, lithium battery BMS overcharge detection protection, over temperature protection, load open circuit and short circuit peotecton, load overcurrent protection, etc


Weight260g

Controller dimensions(mm)80*82*23.5

Controller mounting dimensions(mm)65.5*75
