Cheap Price LED Street Light 80w 90w 100w
Super High Performance Price Ratio
Higher efficacy LED
China famous driver brands INVENTRONICS, SOSEN.
More convenient for installation and maintenance.
Multiple Configurations Optional
10KV SPD is optional.
The glass cover is optional.
Photocell, timer dimming, 0-10V, DALI dimming is optional.
An intelligent control system with a 7 PIN NEMA interface is optional.
Wider Application
RF904 series LED street light will provide a better stability, better lumen output and a very long lifetime.
5 years warranty for the whole fixture.
It can be applied to streets, highways, roads, squares, parks, and parking lots.

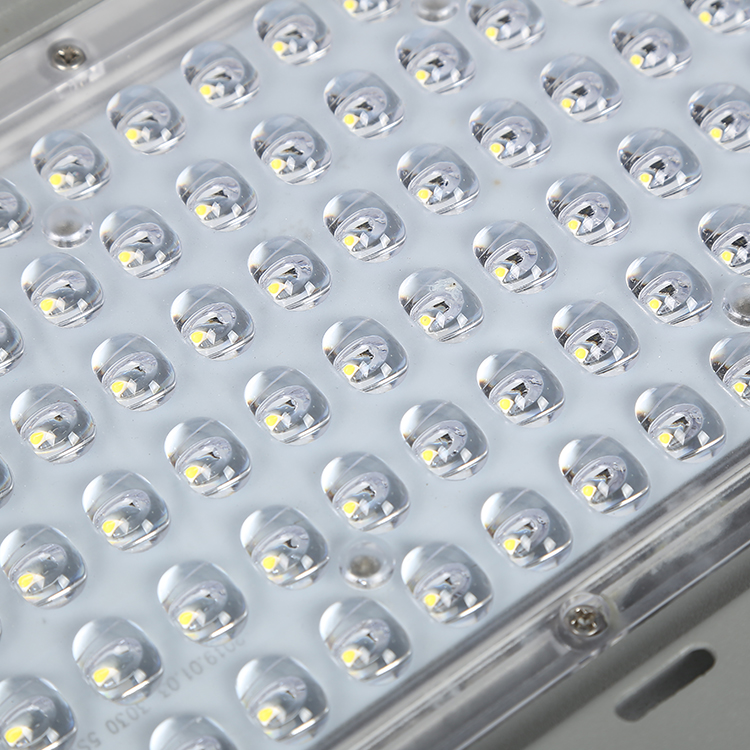

Led chip
Led driver
Surge protection
Photocell
Optional glass cover
Excellent heat dissipation

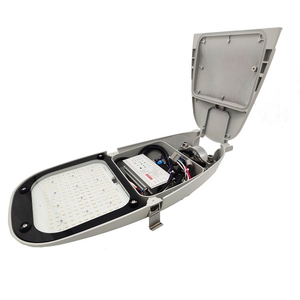

Tool free open
Convenient maintenance
Installation
Smart solution control
Product parameters
ITEM | 20W - 30W | 40W - 60W | 80W - 100W | 120W - 150W | 180W - 250W |
Input Voltage | 100-277VAC,50/60Hz | ||||
Power Factor | >0.95 | ||||
THD | <15% | ||||
Light Distribution | I-S,II-M, III-M,V | ||||
CCT | 2700K~6500K | ||||
CRI | Ra>70 | ||||
SDCM Value | <5SDCM | ||||

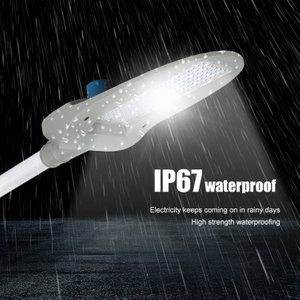

Protection Grade | IP67, IK09 | ||||
LED | LUXEON | ||||
Electrical Protection | CLASS I or CLASS II | ||||
Luminous Flux | 110~130Lm/W | 120~140Lm/W | |||
Housing | Die-casting | ||||
Warranty | 5 Years |
Datailed photos
