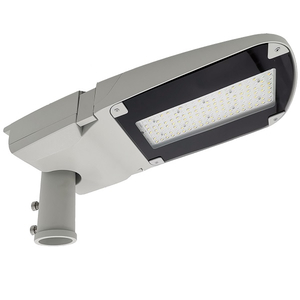

High Lumen 160m/W Waterproof IP66 80W LED Street Light Lamp
Product:
Built with extensive strong aluminum casting materials and reliable components, Real-one low profile street light has been defined as a high performance and cost-effective luminaire. The unique thermal design enables passive heat dissipation to accommodate a different range of power consumption. Easy and tool-less access to driver compartment brings more convenience of maintenance service.
Features:
● CE, CB, ENEC, RoHs Inmetro Certificated
● Luminaire light efficiency 150lm/w
● 0° to + 90° boom angle adjustable without arm adapter
● Compatible with post top or side entry Dia25mm-76mm spigot
● Die-cast aluminium construction for optimal heat dissipation
● UV stabilized tempered glass
● Tooless gear tray removal for ease of maintenance
● 10KV Surge protection available in standard
● Complete with photocell option, Smart city system
● IP66. IK08 Rating. 5 Years warranty.
● Lifespan L70>100,000 hours
○ 0~10V Dimming for Energy saying
○ DALI for remote monitoring and reporting and networking
○ SimpletSet, wireless configuration interface
○ Long lifetime and robust protectiong against moisture, vibration and tempetature
○ Configurable operating windows(ADC)
○ Programmable constant light output(CLO)
○ Integrated Driver temperature protection
○ Reliable system
○ 5 years warranty
○ Failure rate < 0.01%
Technical parameter:
Power Range | 30~280W | LED Type | Lumileds/Luxeon3030/5050 |
| Input Voltage | 100~277/220~240/347~480V | Surge Protection | 10KV Standrad(20KV Option) |
| Power Factor | >0.96 | Frequency Range | 50/60Hz |
| THD | <20% | Finishing | Black/Bronze/Gray |
| L70 Calculated | >300,000 hours | CRI | Ra70/Ra80 |
| Operating Temp | -40℃ ~ 50℃ | Optic(IESNA) | Type2 M/Type2 L/Type3 M/Type3 L/Type4 M |
| Efficacy | 130~160Lm/W | IP Rating | IP66 |
| CCT | 4000K/5000K/5700K | Certificates | CE CB ENEC RoHS |
Product dimension
| Model No. | Nomonal Watt | Delivered Lumen 160Lm/W 130Lm/W | ||
| RF-903-80 | 80W | 12800Lm | 10400Lm | |
| RF-903-100 | 100W | 16000Lm | 13000Lm | |
| RF-903-120 | 120W | 19200Lm | 15600Lm | |
| Product Dimension | Carton Dimension | N.W/CTN | G.W/CTN | PCS/CTN | Capacity |
| 644.4x252 x96.2(mm) 25.37 x 9.92 x3.79(inch) | 694x313x169(mm) 27.32x9.92x6.66(inch) | 6.9KGS (15.01lbs) | 8.2KGS (17.90lbs) | 1PC/CTN | 20'GP:692CTNS 40'GP:1487CTNS 40'HQ:1743CTNS |
Factory:
